You can create a new VM using a predefined recipe. Recipes are VM image templates that allow the automated creation of a new preconfigured VM with the selected operating system, applications, and configuration information. Recipes are quick and convenient, and may be preloaded with various software configurations. To enable configuration, recipes include questions about each instance, such as the desired network configuration, username and password, in addition to standard VM parameters such as drive size or amount of RAM. MacStadium recommends using a recipe when deploying a new VM, especially for users new to this process. Recipes ensure that VMs are configured optimally for operation within Private Cloud, and are much faster to install and deploy when compared to manual VM creation.
  1. Select Machines Dashboard → Virtual Machines.
  2. Click New VM.

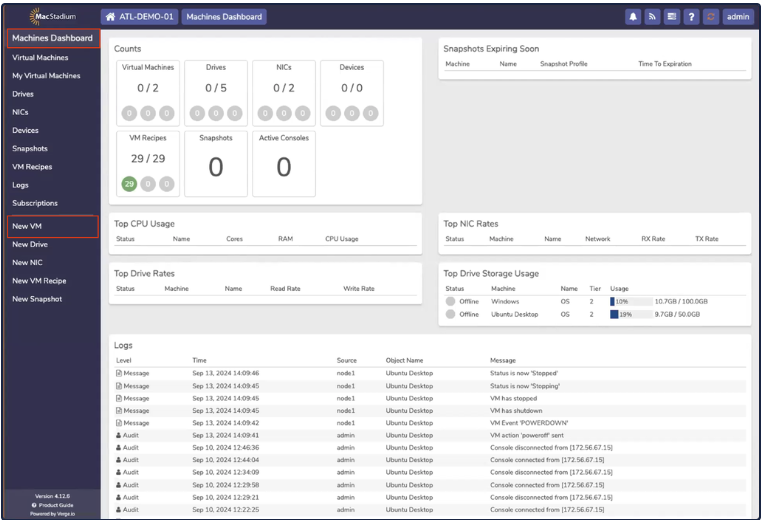

Private Cloud Machines Dashboard with New VM button New VM
  1. The Select Type tab opens. The left-hand side of the screen contains a list of options (Operating Systems, Services, and so on.) The right-hand side of the screen contains a list of recipes.

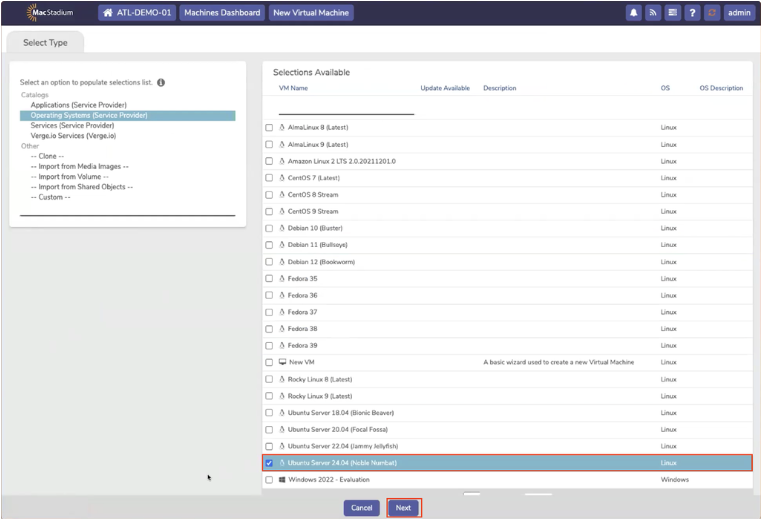

Private Cloud Select Type tab showing OS recipes list with Ubuntu Server highlighted EXAMPLE - > Existing Recipe, for Ubuntu Server (recommended) MacStadium recommends using a preexisting recipe if one exists for the OS you need. Recipes always install the latest version of the selected OS in an optimal configuration with minimal post-installation configuration required. If a recipe does not exist for your OS, select New VM and use the template to create a new recipe.
  1. In this example, select the recipe for Ubuntu Server 24.04 and click Next.
  2. The Virtual Machine Setting tab opens.
Private Cloud Virtual Machine Settings tab with recipe fieldsVirtual Machine Settings Tab
  1. In the VM Recipe Instance box, complete the following fields:
  • Name - the machine name used for management inside Private Cloud
  • Cores - specifies the number of vCPUs allocated to this machine
  • RAM - specifies the amount of RAM allocated to this machine
  • Cluster - specifies the compute cluster to deploy the machine to. This should be left as Default.
  • Hostname - the network hostname for the machine
Private Cloud VM Recipe Instance fields showing Name, Cores, RAM, Cluster, and Hostname VM Recipe Instance
  1. In the Network box, you must select Static from the dropdown box. You must also select the correct Network from the dropdown list in order to ensure connectivity to existing MacStadium infrastructure. Otherwise, Private Cloud will provision a new isolated network for the VM.

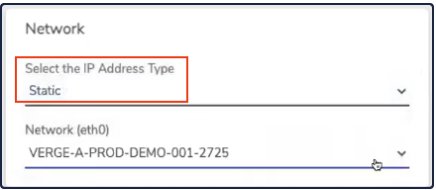

Private Cloud Network section with Static IP type and network dropdown Network Do not use DHCP as the IP Address Type when connecting VMs to existing networks. While DHCP is the default setting for IP Address Type, MacStadium Mac infrastructure is deployed with static IPs, and no DHCP server is present. In order for network connectivity to work for deployed VMs on MacStadium networks, an IP must be set manually using the Static IP Address Type.
  1. In the Static IP Configuration box, all fields must be completed. However, the auto option in the IP Address field does not work. Complete the following fields:
  • IP Address – Specifies the IP address of the server. The default is auto, this is an invalid option for the static IP. Consult the IP Plan in your MacStadium Portal account to determine an IP Address that doesn’t conflict with existing machines.
  • Subnet Mask – Specifies the range used for the subnet. This is in CIDR notation. The most common selection is ‘/24’
  • Default Gateway – Specifies the IP to use for routed external traffic. This should be listed in the IP Plan
  • Nameservers – Specifies the DNS servers to use for name resolution. This is not optional, and must be completed in order to resolve hostnames.
The default IP Address is Auto, however, this option does not work. You must select an IP Address that is not currently being used by your machine, in the subnet of the network you are connected to. Please consult the MacStadium IP Plan. the private subnet, the client can have on reserver, addresses near the end of the subnet. A subnet of 10.254.232.0/24, for example, can reserve address range, 10.254.232.200 through 10.254.232.250 for VMs. This only works for customers who will not use the entire subnet for bare metal hosts. In the Drives box, select the OS Drive Size and OS Drive Tier. The OS Drive Tier specifies the tier of storage to deploy to, currently, only Tier 2 is available. Private Cloud Drives section showing OS Drive Size and OS Drive Tier fields Drives
  1. In the User Configuration box, complete the following fields:
  • User Name – the desired username for the default user on the server
  • Password – the desired password for the default user on the server
  • Confirm Password
Or
  • Provide an SSH Key – optional, enables SSH key authentication for the default user

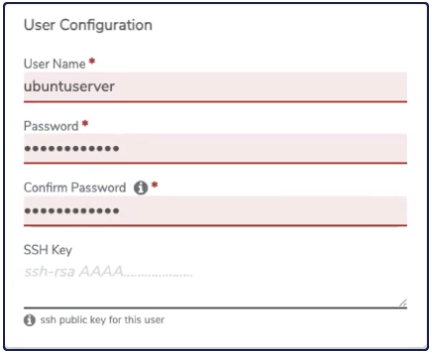

Private Cloud User Configuration section with username, password, and SSH key fields User Configuration
  1. Click Submit.
  2. The new VM screen (Ubuntu Server , in this case) opens and the drives will begin to initialize. This may take a few minutes to complete, as Private Cloud will fetch the latest disk image for the selected operating system if an update is available. During this time, the Drive status will be listed as Importing.

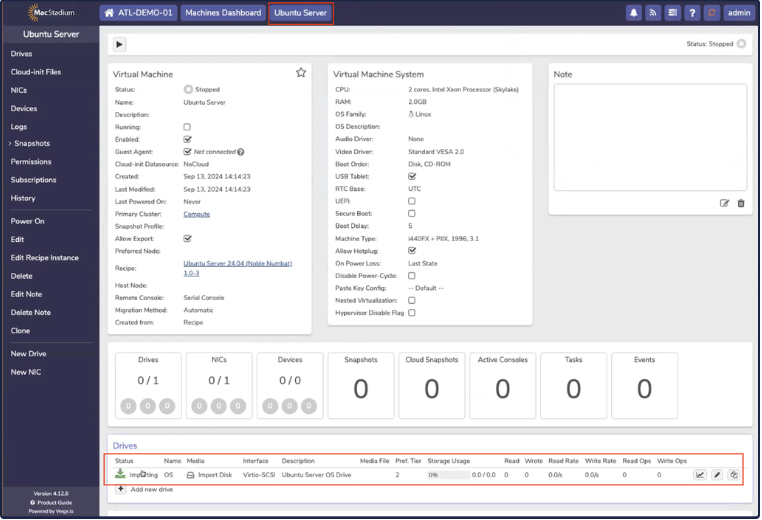

Private Cloud new VM screen with drive status showing ImportingNew VM Screen
  1. Once the drive has finished importing, the status will change to Offline. At this point, the machine is initialized and ready to be powered on.
Private Cloud VM screen with drive status showing Offline and ready to launchOffline = Ready to Launch
  1. Click the Power button and the Confirmation box opens. Click Power On.

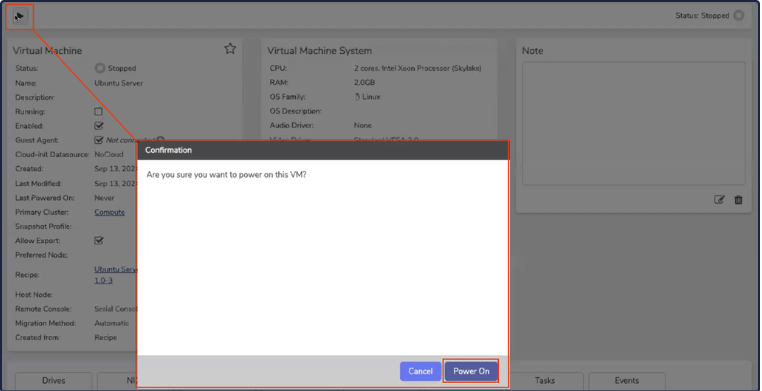

Private Cloud Power On confirmation dialog Power On
  1. Open the Console by clicking the Console button.
Private Cloud VM page with Console button highlighted Console Button
  1. When the Console opens, the disk boots and stops at a login prompt. Shortly after, the machine will start to download the latest available software updates.
Private Cloud console showing Ubuntu Server login prompt Console For the majority of Linux virtual machine recipes, the Console is configured to appear as a text terminal. This makes copy/pasting text much easier, and enables easy access to terminal history.
